DMW3 VW AUDI Code Reader and Mileager Programmer Tool

Language version: Chinese/English

DMW3 Main function:

1.Diagnose(KWP1281,KWP2000,KWP6000)
2.Odometer Correction(K-line,CAN BUS)
3.Anti-theft code reader (IMMO1, IMMO2, IMMO3, WFS)
4.Key matching

DMW3 Detail specification:

Diagnositc
1.information read of control unit
2.read fault code
3.clear the fault code
4.the implementation of component testing
5.read data stream
6.the basic setting
7.control unit coding
8.matching and adjustment
9.log in and authorization

Odometer Correction
1. VDO instruments (K-Line and CAN BUS)
2. Motometer dashboard (K-Line)
3. Marelli dashboard (CAN BUS)
4. Bosch dashboard (K-Line)

Anti-theft code reader
1. read the password for engine control unit
2. read password for anti-theft box
3. read password for dashboard

Key matching
1. control unit of anti-theft box
2. the dashboard control unit
3. Kessy control unit

Attention: DMW3 can not cover all VW or Audi cars.

Use the numeric keys of the keyboard 0-9 to enter the mileage, anti-theft password, data stream group number, channel number, etc. match. The numeric keys can also directly select the corresponding menu item.

Arrow keys
used to scroll the menu to change the data flow group number and channel number, adjust the digital input and so on.

Function keys
ESC to cancel the current operation OK to confirm the current operation. F1 and F2 for the confirmation of the special operation. Specific application can refer to the operation of each function description.

Software upgrade
DMW3 in-line mode DMW3 through the computer to read the sequence number, sequence number sent to the supplier to obtain the appropriate upgrade

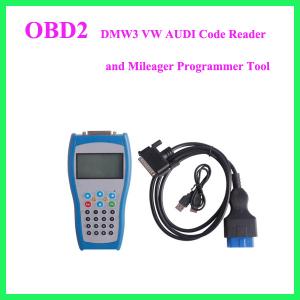

DMW3 VW AUDI Code Reader and Mileager Programmer Tool Images
